Virtual Desktop Infrastructure Ready

The iSAN® 7000 Series SAN storage models provide maximum performance, and the redundancy of hardware level mirroring, with automatic failover, within a single dual controller solution. The iSAN® 7000 Series is loaded with onboard data protection features like snapshot backup, portable disk backup, tape backup and encrypted and deduplicated WAN replication. Virtual disk snapshots can be performed, on-demand any time, on a timed schedule as often as every 5 minutes, or when data changes reach a threshold that you set. Backups execute per virtual disk as a background task with minimal operational impact, and can be scheduled to occur after hours or on-demand at any time, including during business hours if desired. Offload copying starts immediately, so there is no "backup window". Replication can be performed either as snapshots occur or on a separate schedule, if desired. Data at the remote site is available for immediate use with no need to perform a restore function.

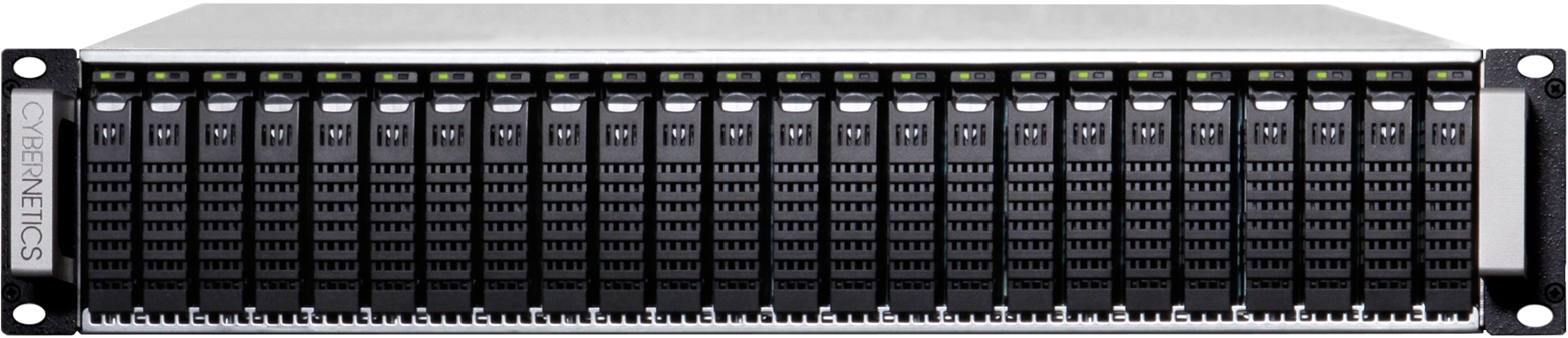

iSAN® 7000 Series

All storage solutions are scalable, up to 7 expansion units, have a transfer rate of 1.5GB/s, support RAID Levels 0, 1, 5, 6, 10, perform at 700,000 IOPS and are all available with SATA, SSD, and SAS Hard Disks.

Compatibility

Operating System Compatibility

AIX 5.3 and higher, MAC OS (with initiator), HPUX 11.11 and higher Solaris 10.X and higher, Linux, Windows 7, 2000, 2003, 2008, XP, or above, Netware 6.5 SP6+

Special Applications Compatibility

VMware ESX Server 3.5+, HyperV, vSphere 4, 5 SQL Database, Xen, Oracle Database

iSCSI Initiator Compatibility

Microsoft iSCSI Software Initiator, Novell iSCSI Initiator, Linux Open-iSCSI Initiator, Apple Macintosh iSCSI Initiator

iSAN® 7224 iSAN® 7216 iSAN® 7124 iSAN® 7116
Disk Drive Bays 24 Bays 16 Bays 24 Bays 16 Bays
Controllers Two Two One, upgradable to two One, upgradable to two
Dedicated I/O Cache 96 GB, expandable 96 GB, expandable 48 GB, expandable 48 GB, expandable
System Type 2U Rackmount 3U Rackmount 2U Rackmount 3U Rackmount
Network Interface Twelve (12) GbE Ports, upgradeable Twelve (12) GbE Ports, upgradeable Six (6) GbE Ports, upgradeable Six (6) GbE Ports, upgradeable
Power Consumption 441 Watts average 323 Watts average 441 Watts average 323 Watts average
Heat Output 1,506 BTU/HR average 1,103 BTU/HR average 1,507 BTU/HR average 1,103 BTU/HR average
Weight 64 lbs. 84 lbs. 55 lbs. 75 lbs.
